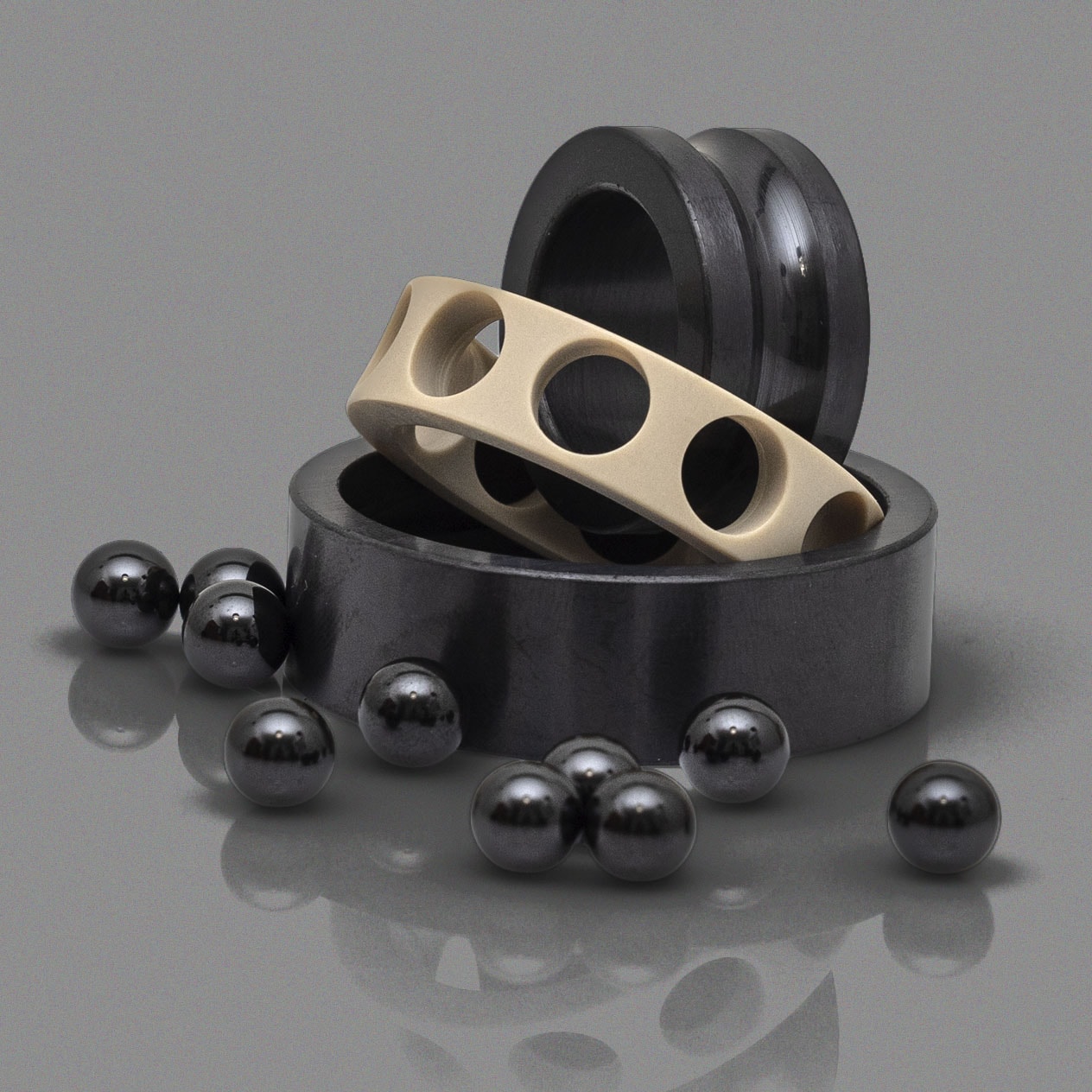

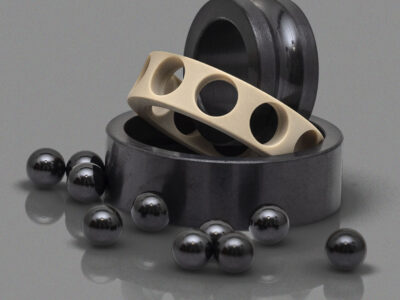

7002 Full Ceramic Angular Contact Ball Bearings (15×32×9)
7002 Full Ceramic Angular Contact Ball Bearings from Ortech Ceramics are high-precision spindle bearings engineered for demanding environments requiring high speed, corrosion resistance, and thermal stability. These bearings are manufactured entirely from advanced ceramic materials, providing exceptional durability, low friction, and reliable performance in extreme operating conditions.
Full ceramic angular contact bearings are ideal for applications where conventional steel bearings cannot perform due to corrosion, temperature, or lubrication limitations.
Key Features
-
Manufactured to ABEC-3 or ABEC-5 precision grades
-
Ceramic rings available in Zirconia Oxide (ZrO₂) or Silicon Nitride (Si₃N₄)
-
Silicon Nitride (Si₃N₄) ceramic balls for high strength and low friction
-
PEEK cage or full complement design (without retainer) for maximum load capacity
-
Contact angles: 15° or 25° standard options
-
Excellent corrosion resistance
-
Suitable for high-speed and high-temperature environments
-
Non-magnetic and electrically insulating
Dimensions
| Parameter | Value |
|---|---|
| Dimension System | Metric |
| Inner Diameter (d) | 15 mm |
| Outer Diameter (D) | 32 mm |
| Width (B) | 9 mm |
Single-row angular contact bearings provide high thrust capacity in one direction. They can also be duplex mounted in matched sets for applications requiring higher stiffness, precision, and load capacity.
Availability
Standard configurations are available from stock and typically ship within 7–10 working days.
Large quantity discounts are available.
