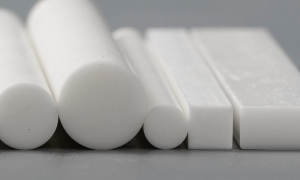

Ceramic Rod

Outer
Diameter (Inch)
Outer
Diameter (mm)
Requested
Length
in mm  Maximum
Length
Quantity
0.011 0.28 12in / 305mm
0.020 0.51 12in / 305mm
0.022 0.56 12in / 305mm
0.024 0.61 12in / 305mm
0.029 0.74 12in / 305mm
0.030 0.76 24in / 609mm
0.035 0.89 24in / 609mm
0.040 1.02 24in / 609mm
0.041 1.04 24in / 609mm
0.043 1.09 24in / 609mm
0.048 1.22 24in / 609mm
0.056 1.42 24in / 609mm
0.063 1.60 24in / 609mm
0.072 1.83 24in / 609mm
0.096 2.44 24in / 609mm
0.125 3.18 36in / 914mm
0.137 3.48 36in / 914mm
0.188 4.78 36in / 914mm
0.197 5.00 36in / 914mm
0.212 5.38 36in / 914mm
0.250 6.35 36in / 914mm
0.264 6.71 36in / 914mm
0.313 7.95 36in / 914mm
0.375 9.53 36in / 914mm
0.388 9.86 36in / 914mm
0.400 10.16 36in / 914mm
0.440 11.18 36in / 914mm
0.500 12.70 36in / 914mm
0.518 13.16 36in / 914mm
0.625 15.88 36in / 914mm
0.640 16.26 36in / 914mm
0.750 19.05 36in / 914mm
0.775 19.69 36in / 914mm
1.100 27.94 12in / 304mm
1.350 34.29 12in / 304mm



Outer
Diameter (Inch)
Outer
Diameter (mm)
Requested
Length
in mm  Maximum
Length
Quantity
0.063 1.60 12in / 304mm
0.125 3.18 12in / 304mm
0.150 3.81 12in / 304mm
0.188 4.78 12in / 304mm
0.250 6.35 12in / 304mm
0.313 7.95 12in / 304mm
0.375 9.53 12in / 304mm
0.390 9.91 12in / 304mm
0.438 11.13 12in / 304mm
0.500 12.70 12in / 304mm
1.100 27.94 12in / 304mm
1.350 34.29 12in / 304mm



Outer
Diameter (Inch)
Outer
Diameter (mm)
Requested
Length
in mm  Maximum
Length
Quantity
0.072 1.83 12in / 304mm
0.137 3.48 12in / 304mm
0.197 5.00 12in / 304mm
0.264 6.71 12in / 304mm



Width (Inch) Width (mm) Requested
Length
in mm  Maximum
Length
Quantity
0.125/0.125 3.18/3.18 30in / 762mm
0.156/0.156 4.00/4.00 30in / 762mm
0.250/0.250 6.35/6.35 30in / 762mm
0.500/0.250 12.70/6.35 36in / 914mm



Dimensional specifications
Material designation
Quantity
Name
Email
Phone Number
[tel-228]
Name of your project
Describe your product in detail
Attach your design documents



Up to 0.500″ Diameter tolerance ± 3% or ± 0.003″ (0.076 mm), whichever is greater. Straightness: camber / length < 0.003

Diameter tolerance ± 5% or ± 0.030″ (0.76 mm), whichever is greater. Straightness: ≤ 0.006″/1.000″ cumulative

Additional Information

  • Discounts on large quantities of Ceramic Rod
  • Unit price and estimated ship dates will be calculated when the length and quantity are specified.
  • Minimum line item charge is applicable.
  • Typical response time is Max 24 hours.
  • In stock items will typically ship in 3 to 5 working days.
  • Terms: Net 30 days (with approved credit). Master Card and Visa accepted.
